Variable Importance

Dr. D’Agostino McGowan

1 / 9
Dr. Lucy D'Agostino McGowan adapted from slides by Hastie & Tibshirani

Variable importance

  • For bagged or random forest regression trees, we can record the total RSS that is decreased due to splits of a given predictor Xi averaged over all B trees
2 / 9
Dr. Lucy D'Agostino McGowan adapted from slides by Hastie & Tibshirani

Variable importance

  • For bagged or random forest regression trees, we can record the total RSS that is decreased due to splits of a given predictor Xi averaged over all B trees
  • A large value would indicate that that variable is important
2 / 9
Dr. Lucy D'Agostino McGowan adapted from slides by Hastie & Tibshirani

Variable importance

  • For bagged or random forest classification trees we can add up the total amount that the Gini Index is decreased by splits of a given predictor, Xi, averaged over B trees
3 / 9
Dr. Lucy D'Agostino McGowan adapted from slides by Hastie & Tibshirani

Variable importance in R

rf_spec <- rand_forest(
  mode = "classification",
  mtry = 3
) %>%
  set_engine(
    "ranger",
    importance = "impurity")
model <- fit(rf_spec,
             HD ~ Age + Sex + ChestPain + RestBP + Chol + Fbs +
               RestECG + MaxHR + ExAng + Oldpeak + Slope + Ca + Thal,
             data = heart)
ranger::importance(model$fit)
##        Age        Sex  ChestPain     RestBP       Chol        Fbs    RestECG
##  9.1131749  3.9700559 16.9967476  7.1194992  7.1286452  0.7984602  1.6766312
##      MaxHR      ExAng    Oldpeak      Slope         Ca       Thal
## 13.6944596  5.8784571 13.0535972  5.6513815 17.7194145 14.7356179
4 / 9
Dr. Lucy D'Agostino McGowan adapted from slides by Hastie & Tibshirani

Variable importance

library(ranger)
importance(model$fit)
##        Age        Sex  ChestPain     RestBP       Chol        Fbs    RestECG
##  9.1131749  3.9700559 16.9967476  7.1194992  7.1286452  0.7984602  1.6766312
##      MaxHR      ExAng    Oldpeak      Slope         Ca       Thal
## 13.6944596  5.8784571 13.0535972  5.6513815 17.7194145 14.7356179
5 / 9
Dr. Lucy D'Agostino McGowan adapted from slides by Hastie & Tibshirani

Variable importance

library(ranger)
importance(model$fit)
##        Age        Sex  ChestPain     RestBP       Chol        Fbs    RestECG
##  9.1131749  3.9700559 16.9967476  7.1194992  7.1286452  0.7984602  1.6766312
##      MaxHR      ExAng    Oldpeak      Slope         Ca       Thal
## 13.6944596  5.8784571 13.0535972  5.6513815 17.7194145 14.7356179
var_imp <- ranger::importance(model$fit)
5 / 9
Dr. Lucy D'Agostino McGowan adapted from slides by Hastie & Tibshirani

Plotting variable importance

var_imp_df <- data.frame(
  variable = names(var_imp),
  importance = var_imp
  )
var_imp_df %>%
ggplot(aes(x = variable, y = importance)) +
  geom_col()

6 / 9
Dr. Lucy D'Agostino McGowan adapted from slides by Hastie & Tibshirani

Plotting variable importance

var_imp_df <- data.frame(
  variable = names(var_imp),
  importance = var_imp
  )
var_imp_df %>%
ggplot(aes(x = variable, y = importance)) +
  geom_col()

How could we make this plot better?

6 / 9
Dr. Lucy D'Agostino McGowan adapted from slides by Hastie & Tibshirani

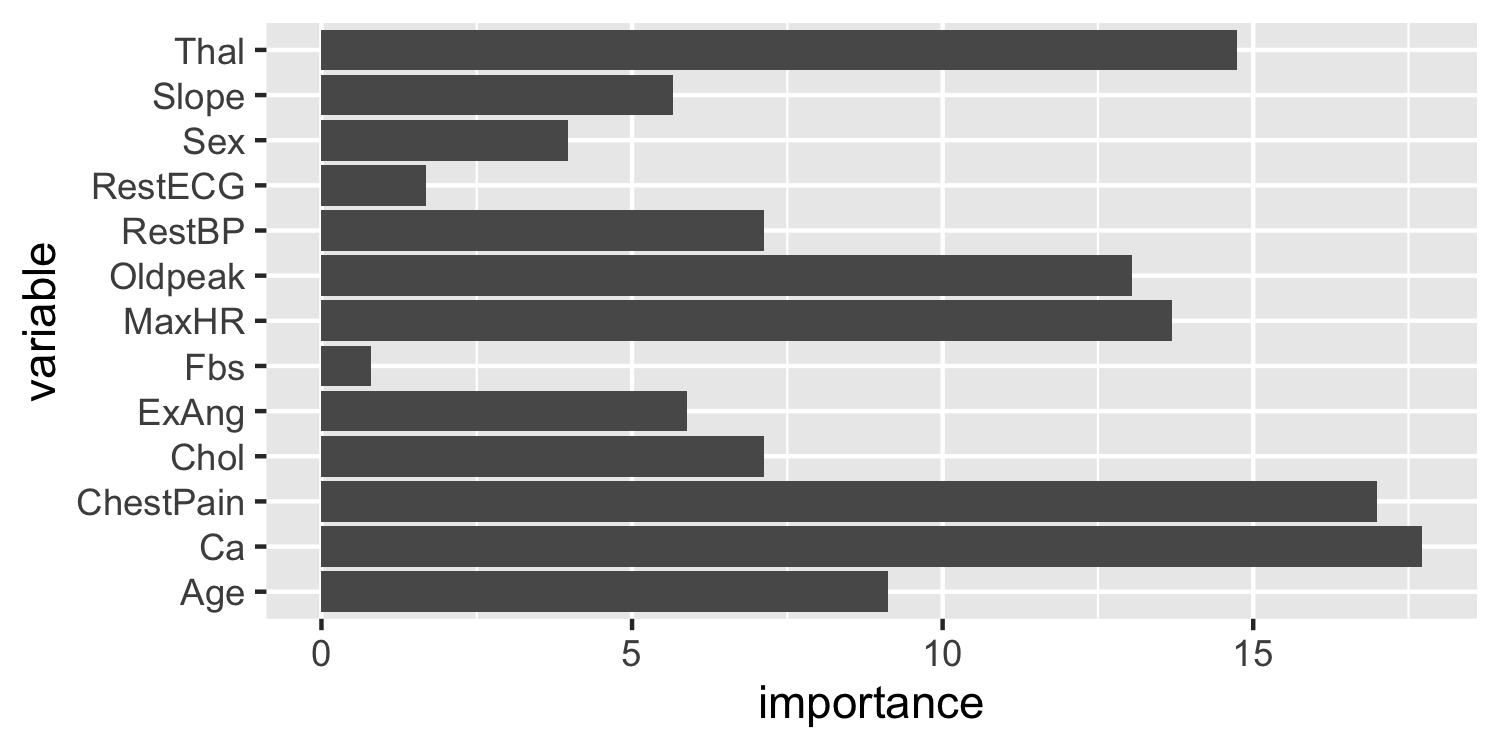

Plotting variable importance

var_imp_df %>%
ggplot(aes(x = variable, y = importance)) +
  geom_col() +
  coord_flip()

How could we make this plot better?

7 / 9
Dr. Lucy D'Agostino McGowan adapted from slides by Hastie & Tibshirani

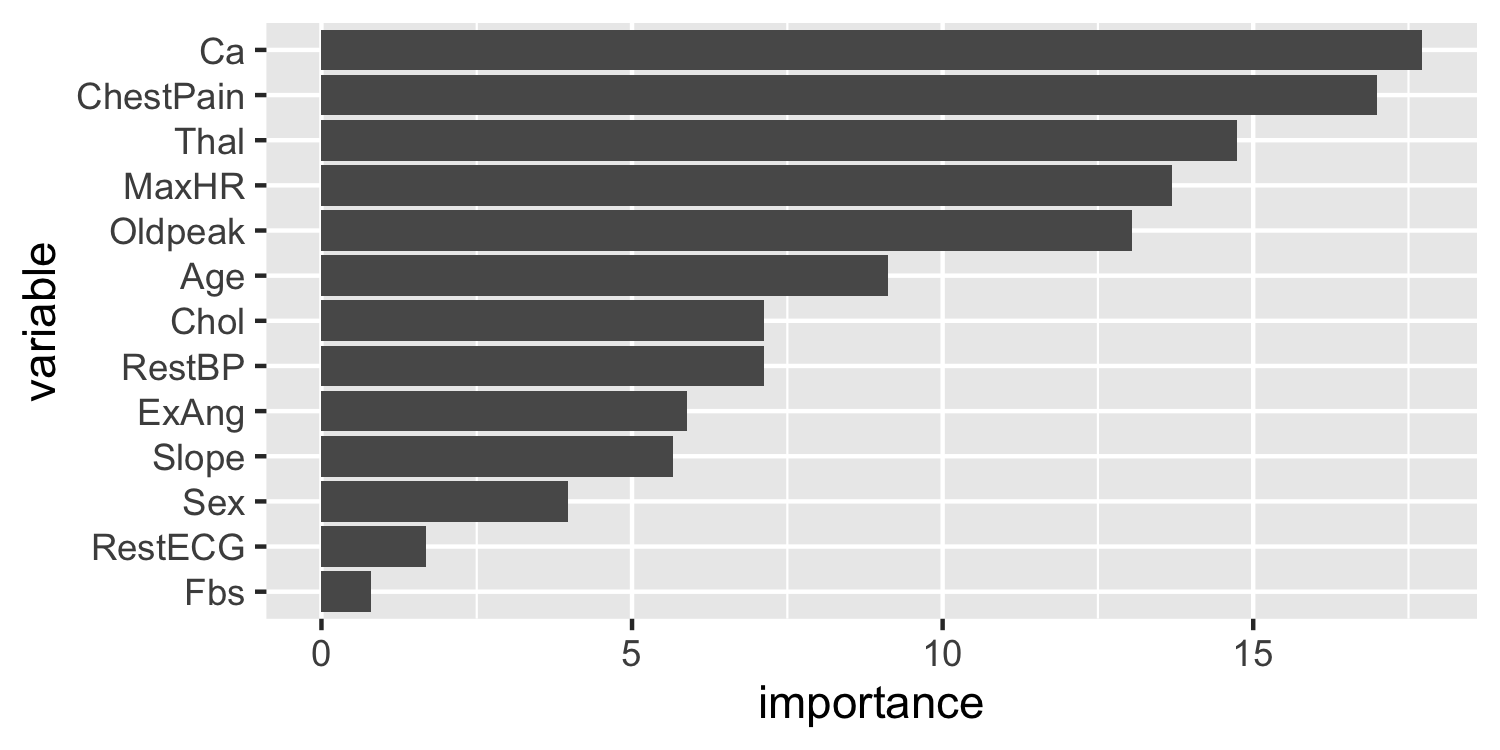

Plotting variable importance

var_imp_df %>%
  mutate(variable = factor(variable,
   levels = variable[order(var_imp_df$importance)])) %>%
ggplot(aes(x = variable, y = importance)) +
  geom_col() +
  coord_flip()

8 / 9
Dr. Lucy D'Agostino McGowan adapted from slides by Hastie & Tibshirani
9 / 9
Dr. Lucy D'Agostino McGowan adapted from slides by Hastie & Tibshirani

Variable importance

  • For bagged or random forest regression trees, we can record the total RSS that is decreased due to splits of a given predictor Xi averaged over all B trees
2 / 9
